01
COLOR
Vintage treble boostA silicon treble-booster voice with focused attack, harmonic energy, and the ability to clean up dramatically from your guitar’s volume.
PRISM
$299
Color
Stainless Steel
Stainless Steel
Stainless Steel
- Stainless Steel
- Anodized Black
- Galaxy Edition
- Anodized Blue
- Anodized Purple
- Anniverasry LTD 250 only

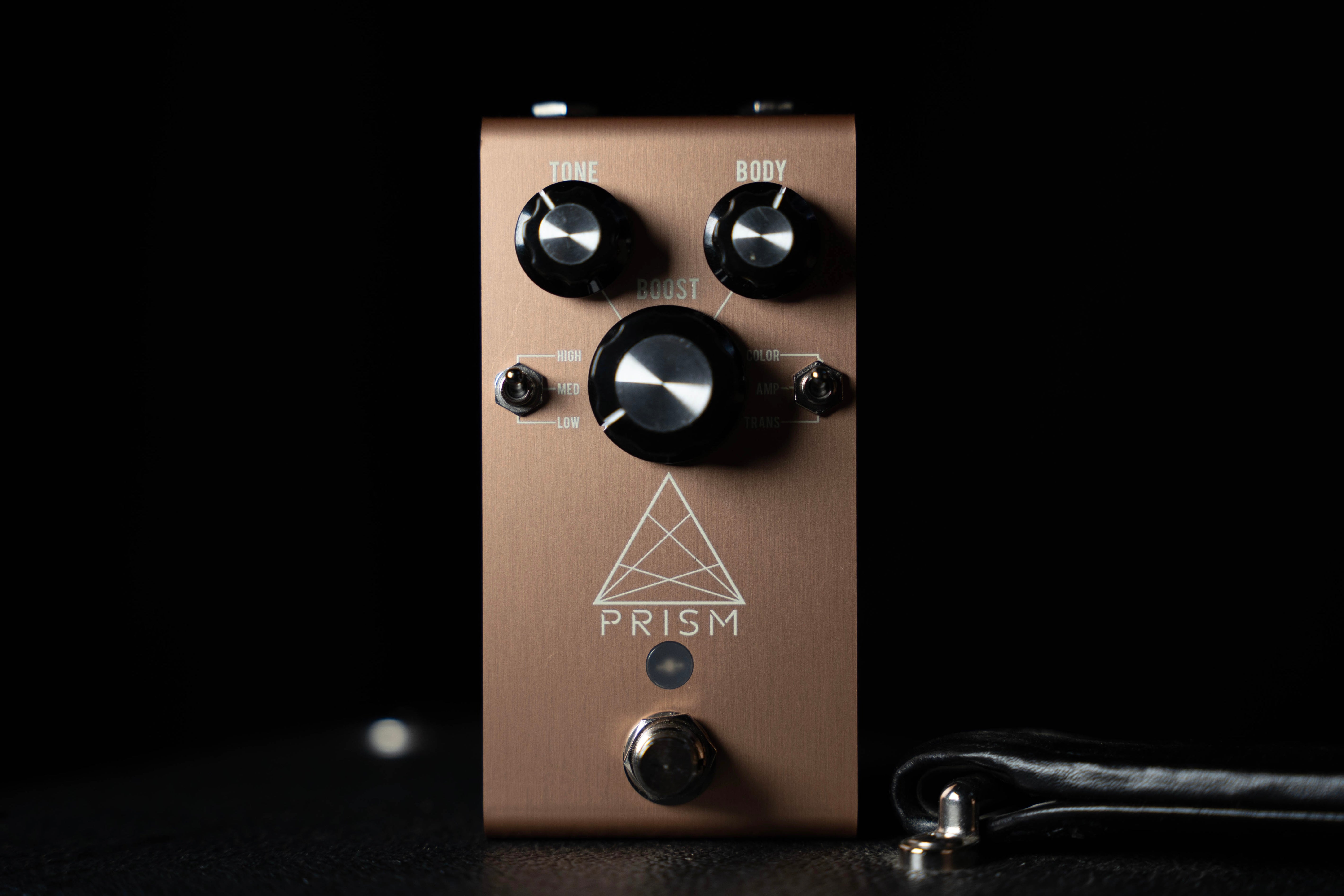

- Rose Gold
Condition
NEW
NEW
NEW
- NEW
- B-Stock
Watch the Prism overview
BOOST · PREAMP · EQ · BUFFER
Your tone.
Refracted.
Prism takes your guitar’s natural voice and gives you the tools to boost it, shape it, and transform it—without losing what made it yours in the first place.
Three boost voices
±15dB active EQ
18V internal operation
High-current buffer
01 / VOICES
Three distinct ways to push your sound.
Each boost circuit is completely discrete and placed in its own true-bypass loop, allowing every voice to retain its individual character.
02
AMP
Tube-inspired pushA musical MOSFET boost designed to respond like the front end of an overdriven vacuum-tube amplifier.
03
TRANS
Transparent clean boostAn 18V-powered JFET circuit that preserves your core tone while delivering more output, clarity, and headroom.
02 / SCULPT
One pedal. Your whole rig in focus.
Prism’s active EQ lets you re-voice your setup when changing guitars, amplifiers, pedals, or venues—without readjusting every piece of gear.
TONE
Shape the highs
The Tone control provides up to 15dB of high-frequency boost or cut.
−15dB
0
+15dB
BODY
Shape the lows
The Body control adds or removes up to 15dB of low-frequency content.
ZERO INTERACTION
Tone adjusts the highs without shifting the lows. Body adjusts the lows without changing the highs. Each control stays focused on its job.
03 / RESPONSE
Set the feel before setting the volume.
Maximum headroom
Open, clean response with the greatest available dynamic range.
Rhythm breakup
A balanced setting for mild breakup and responsive rhythm tones.
Lead saturation
More gain and harmonic intensity for heavier breakup and lead tones.
01
RECOMMENDED PLACEMENT
Put Prism first.
Placing Prism at the beginning of your signal chain gives its active EQ the clearest access to your guitar and allows the Color treble-booster circuit to respond naturally to your pickups and volume control.
GUITAR
PRISM
PEDALBOARD
AMP
Strong signal. Clear destination.
A high-current output buffer strengthens your signal at the end of the Prism, helping preserve clarity through complex pedalboards and long cable runs.
04 / CONTROLS

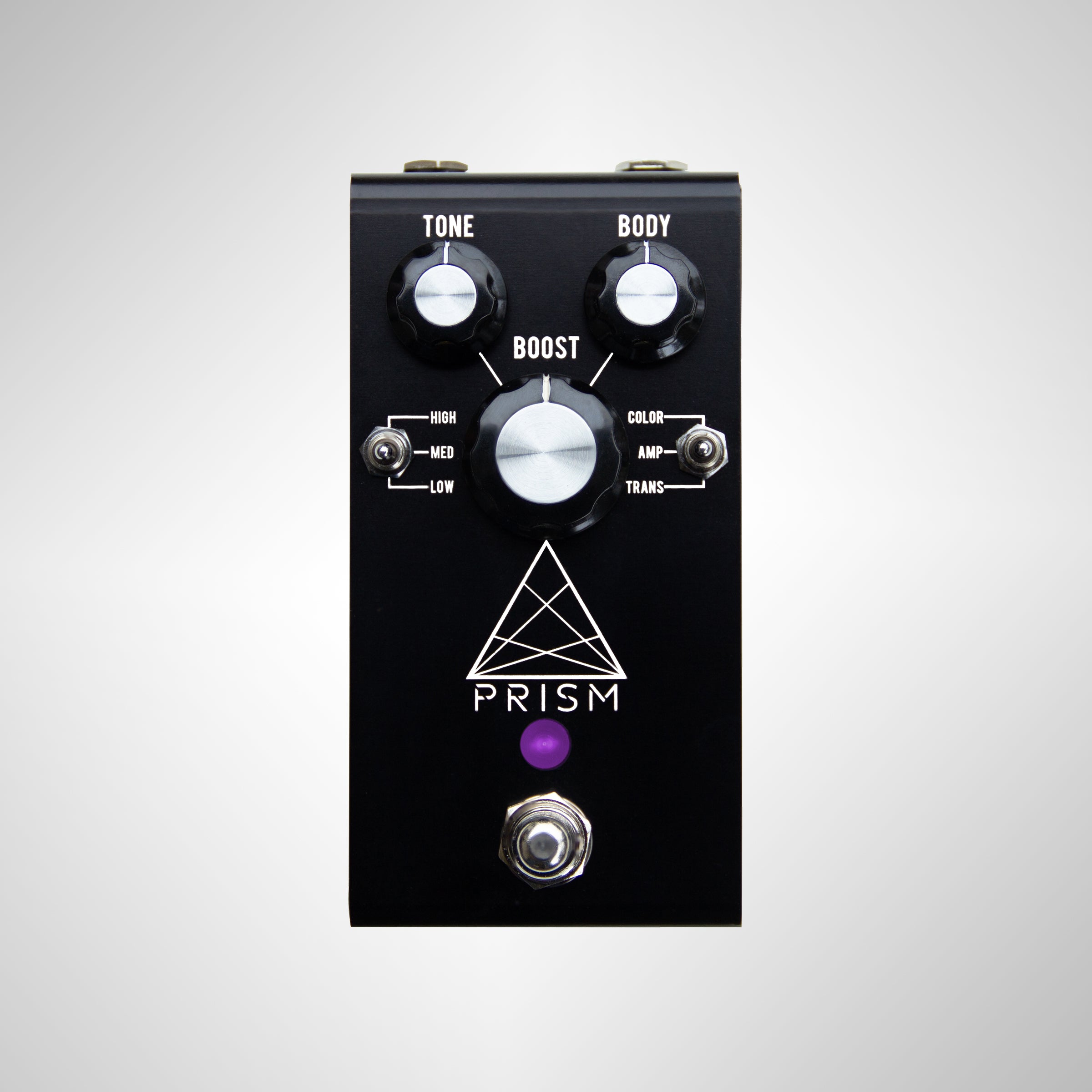

Everything within reach.
Tone + Body +
Tone controls the high frequencies while Body controls the low
frequencies. Each active control provides up to 15dB of boost or cut.
Boost +
Boost sets the overall output level and works with the Pre Gain switch
to balance clean volume against circuit gain.
Pre Gain +
Choose Low for maximum clean headroom, Medium for mild rhythm breakup,
or High for heavier breakup and lead tones.
Circuit Select +
Select Color for vintage treble boost, Amp for tube-inspired drive,
or Trans for transparent JFET boost.
Bypass + Programming +
The soft-touch switch controls relay bypass. Hold it for five seconds
to enter programming mode, where you can adjust indicator brightness
and choose whether the pedal powers up on or off.
TECHNICAL INFORMATION
Compact by design.

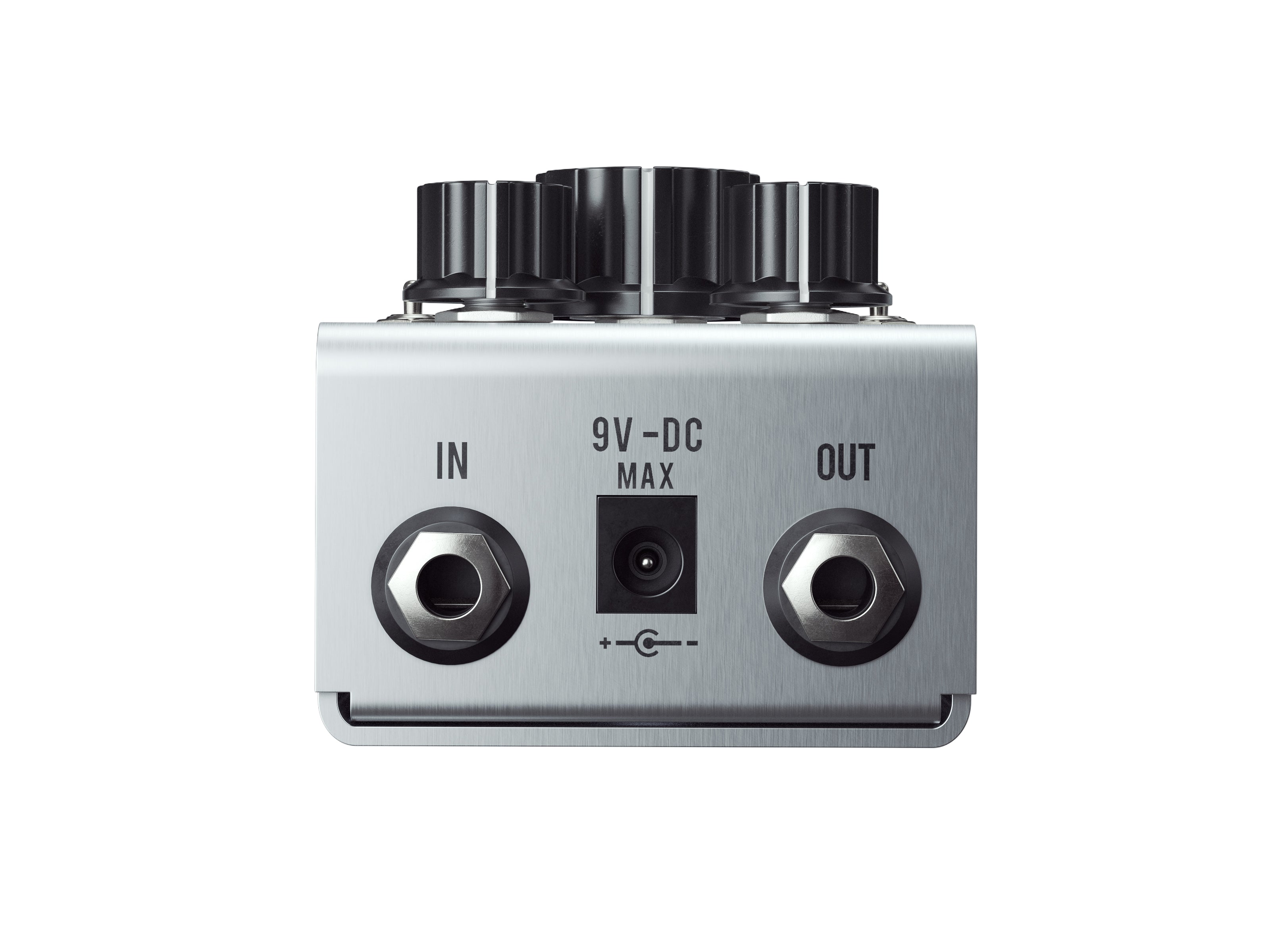

Dimensions2.5″ × 4.875″
Power9V DC
PolarityCenter negative
Minimum current100mA
Internal voltage18V charge pump
POWER NOTE
Use a 9V DC power supply. Feeding Prism 18V will not increase headroom or improve its sound and may shorten the internal regulator’s lifespan.
Find the color already hiding inside your tone.
